TiAlN Coated Carbide High-Speed High-Feed Machining Drill, Regular
Cliquez sur cette image pour l'agrandir.
Cliquez sur cette image pour l'agrandir.
- Remise sur volume
Référence pièce
Vous pouvez trouver ici le numéro
de référence lié au produit recherché.
| Référence pièce |
Prix unitaire standard
| Quantité minimale de commande | Remise sur volume | Hole diameter (drill diameter) D (mm) | Groove Length L (mm) | Overall Length L (mm) | Shank Diameter d | Diameter Tolerance | Tolerance of Shank Diameter | |
|---|---|---|---|---|---|---|---|---|---|---|
47.83 € | 1 | Disponible | 5 jours | 3 | 28 | 66 | 6 | +0.012 ~ +0.002 | 0 ~ -0.008 | |
47.83 € | 1 | Disponible | 5 jours | 3.1 | 28 | 66 | 6 | +0.016 ~ +0.004 | 0 ~ -0.008 | |
51.53 € | 1 | Disponible | 5 jours | 3.2 | 28 | 66 | 6 | +0.016 ~ +0.004 | 0 ~ -0.008 | |
53.60 € | 1 | Disponible | 5 jours | 3.3 | 28 | 66 | 6 | +0.016 ~ +0.004 | 0 ~ -0.008 | |
51.53 € | 1 | Disponible | 5 jours | 3.4 | 28 | 66 | 6 | +0.016 ~ +0.004 | 0 ~ -0.008 | |
53.60 € | 1 | Disponible | 5 jours | 3.5 | 28 | 66 | 6 | +0.016 ~ +0.004 | 0 ~ -0.008 | |
54.11 € | 1 | Disponible | 5 jours | 3.8 | 36 | 74 | 6 | +0.016 ~ +0.004 | 0 ~ -0.008 | |
56.28 € | 1 | Disponible | 5 jours | 4 | 36 | 74 | 6 | +0.016 ~ +0.004 | 0 ~ -0.008 | |
58.11 € | 1 | Disponible | 5 jours | 4.1 | 36 | 74 | 6 | +0.016 ~ +0.004 | 0 ~ -0.008 | |
58.11 € | 1 | Disponible | 5 jours | 4.2 | 36 | 74 | 6 | +0.016 ~ +0.004 | 0 ~ -0.008 | |
58.11 € | 1 | Disponible | 5 jours | 4.3 | 36 | 74 | 6 | +0.016 ~ +0.004 | 0 ~ -0.008 | |
60.55 € | 1 | Disponible | 5 jours | 4.5 | 36 | 74 | 6 | +0.016 ~ +0.004 | 0 ~ -0.008 | |
61.90 € | 1 | Disponible | 5 jours | 4.8 | 44 | 82 | 6 | +0.016 ~ +0.004 | 0 ~ -0.008 | |
61.90 € | 1 | Disponible | 5 jours | 5 | 44 | 82 | 6 | +0.016 ~ +0.004 | 0 ~ -0.008 | |
65.34 € | 1 | Disponible | 5 jours | 5.1 | 44 | 82 | 6 | +0.016 ~ +0.004 | 0 ~ -0.008 | |
65.34 € | 1 | Disponible | 5 jours | 5.2 | 44 | 82 | 6 | +0.016 ~ +0.004 | 0 ~ -0.008 | |
65.34 € | 1 | Disponible | 5 jours | 5.3 | 44 | 82 | 6 | +0.016 ~ +0.004 | 0 ~ -0.008 | |
67.97 € | 1 | Disponible | 5 jours | 5.5 | 44 | 82 | 6 | +0.016 ~ +0.004 | 0 ~ -0.008 | |
69.07 € | 1 | Disponible | 5 jours | 5.8 | 44 | 82 | 6 | +0.016 ~ +0.004 | 0 ~ -0.008 | |
69.07 € | 1 | Disponible | 5 jours | 6 | 44 | 82 | 6 | +0.016 ~ +0.004 | 0 ~ -0.008 | |
69.07 € | 1 | Disponible | 5 jours | 6.1 | 53 | 91 | 8 | +0.021 ~ +0.006 | 0 ~ -0.009 | |
73.07 € | 1 | Disponible | 5 jours | 6.5 | 53 | 91 | 8 | +0.021 ~ +0.006 | 0 ~ -0.009 | |
73.07 € | 1 | Disponible | 5 jours | 6.8 | 53 | 91 | 8 | +0.021 ~ +0.006 | 0 ~ -0.009 | |
73.07 € | 1 | Disponible | 5 jours | 6.9 | 53 | 91 | 8 | +0.021 ~ +0.006 | 0 ~ -0.009 | |
73.07 € | 1 | Disponible | 5 jours | 7 | 53 | 91 | 8 | +0.021 ~ +0.006 | 0 ~ -0.009 | |
77.64 € | 1 | Disponible | 5 jours | 7.5 | 53 | 91 | 8 | +0.021 ~ +0.006 | 0 ~ -0.009 | |
81.73 € | 1 | Disponible | 5 jours | 7.8 | 53 | 91 | 8 | +0.021 ~ +0.006 | 0 ~ -0.009 | |
81.73 € | 1 | Disponible | 5 jours | 8 | 53 | 91 | 8 | +0.021 ~ +0.006 | 0 ~ -0.009 | |
86.31 € | 1 | Disponible | 5 jours | 8.3 | 61 | 103 | 10 | +0.021 ~ +0.006 | 0 ~ -0.009 | |
86.31 € | 1 | Disponible | 5 jours | 8.5 | 61 | 103 | 10 | +0.021 ~ +0.006 | 0 ~ -0.009 | |
93.33 € | 1 | Disponible | 5 jours | 8.6 | 61 | 103 | 10 | +0.021 ~ +0.006 | 0 ~ -0.009 | |
89.74 € | 1 | Disponible | 5 jours | 8.8 | 61 | 103 | 10 | +0.021 ~ +0.006 | 0 ~ -0.009 | |
89.74 € | 1 | Disponible | 5 jours | 9 | 61 | 103 | 10 | +0.021 ~ +0.006 | 0 ~ -0.009 | |
102.61 € | 1 | Disponible | 5 jours | 9.5 | 61 | 103 | 10 | +0.021 ~ +0.006 | 0 ~ -0.009 | |
97.85 € | 1 | Disponible | 5 jours | 10 | 61 | 103 | 10 | +0.021 ~ +0.006 | 0 ~ -0.009 | |
102.70 € | 1 | Disponible | 5 jours | 10.3 | 71 | 118 | 12 | +0.025 ~ +0.007 | 0 ~ -0.011 | |
102.70 € | 1 | Disponible | 5 jours | 10.5 | 71 | 118 | 12 | +0.025 ~ +0.007 | 0 ~ -0.011 | |
107.27 € | 1 | Disponible | 5 jours | 11 | 71 | 118 | 12 | +0.025 ~ +0.007 | 0 ~ -0.011 | |
115.27 € | 1 | Disponible | 5 jours | 12 | 71 | 118 | 12 | +0.025 ~ +0.007 | 0 ~ -0.011 | |
118.69 € | 1 | Disponible | 5 jours | 12.5 | 77 | 124 | 14 | +0.025 ~ +0.007 | 0 ~ -0.011 | |
123.28 € | 1 | Disponible | 5 jours | 13 | 77 | 124 | 14 | +0.025 ~ +0.007 | 0 ~ -0.011 |
Loading...
Spécifications

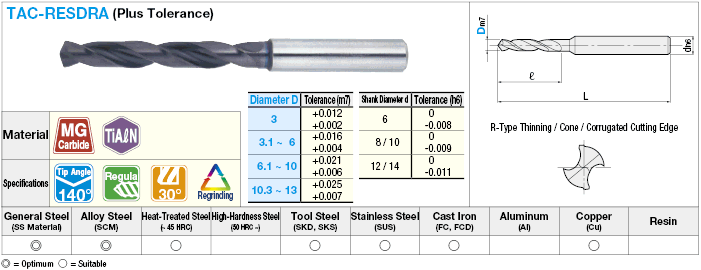

| Model Number | Groove Length ℓ | Overall Length L | Shank Diameter d | |
| Diameter D | ||||
| TAC-RESDRA | 3 | 28 | 66 | 6 |
| 3.1 | 28 | 66 | 6 | |
| 3.2 | 28 | 66 | 6 | |
| 3.3 | 28 | 66 | 6 | |
| 3.4 | 28 | 66 | 6 | |
| 3.5 | 28 | 66 | 6 | |
| 3.8 | 36 | 74 | 6 | |
| 4 | 36 | 74 | 6 | |
| 4.1 | 36 | 74 | 6 | |
| 4.2 | 36 | 74 | 6 | |
| 4.3 | 36 | 74 | 6 | |
| 4.5 | 36 | 74 | 6 | |
| 4.8 | 44 | 82 | 6 | |
| 5 | 44 | 82 | 6 | |
| 5.1 | 44 | 82 | 6 | |
| 5.2 | 44 | 82 | 6 | |
| 5.3 | 44 | 82 | 6 | |
| 5.5 | 44 | 82 | 6 | |
| 5.8 | 44 | 82 | 6 | |
| 6 | 44 | 82 | 6 | |
| 6.1 | 53 | 91 | 8 | |
| 6.5 | 53 | 91 | 8 | |
| 6.8 | 53 | 91 | 8 | |
| 6.9 | 53 | 91 | 8 | |
| 7 | 53 | 91 | 8 | |
| 7.5 | 53 | 91 | 8 | |
| 7.8 | 53 | 91 | 8 | |
| 8 | 53 | 91 | 8 | |
| 8.3 | 61 | 103 | 10 | |
| 8.5 | 61 | 103 | 10 | |
| 8.6 | 61 | 103 | 10 | |
| 8.8 | 61 | 103 | 10 | |
| 9 | 61 | 103 | 10 | |
| 9.5 | 61 | 103 | 10 | |
| 10 | 61 | 103 | 10 | |
| 10.3 | 71 | 118 | 12 | |
| 10.5 | 71 | 118 | 12 | |
| 11 | 71 | 118 | 12 | |
| 12 | 71 | 118 | 12 | |
| 12.5 | 77 | 124 | 14 | |
| 13 | 77 | 124 | 14 |
For Cutting Conditions, Refer to >>Click here.
Informations de base
| work material | General Steel / Heat-Treated Steel / Acier inoxydable / Fonte / Cuivre | Tool Material Type | Carbure | Shank Type | Tige de fraise |
|---|---|---|---|---|---|
| Coating Y/N | Included | Coating Type | TiAlN | With/without Oil Hole | None |
| Point Angle(°) | 140 | Thinning | Included |
